Teac A-4010S (c.1967)

At 20kg, it doesn’t just sit on the rack—it anchors it, a battleship of late-'60s tape engineering built for studio-grade fidelity in the home.

Overview

The Teac A-4010S isn’t a machine for casual listeners. Released around 1967 and priced at ¥99,800—a significant investment at the time—it was Teac’s statement reel-to-reel tape deck, engineered for audiophiles and semi-professionals who demanded precision, reliability, and full stereo versatility. This was the era when high-fidelity tape recording was transitioning from niche hobby to serious home pursuit, and the A-4010S arrived as a fully loaded contender. Unlike simpler decks that compromised on motors or head configuration, the A-4010S went all-in: three independent motors, a four-head system, and an innovative foil-sensing auto-reverse mechanism that allowed seamless bidirectional playback of 4-track stereo tapes. It wasn’t just another recorder; it was a command center for tape, built with the kind of over-engineering that made Japanese audio gear of the late '60s so respected.

Key Features

Three-Motor Drive System with Hysteresis Synchronous Capstan

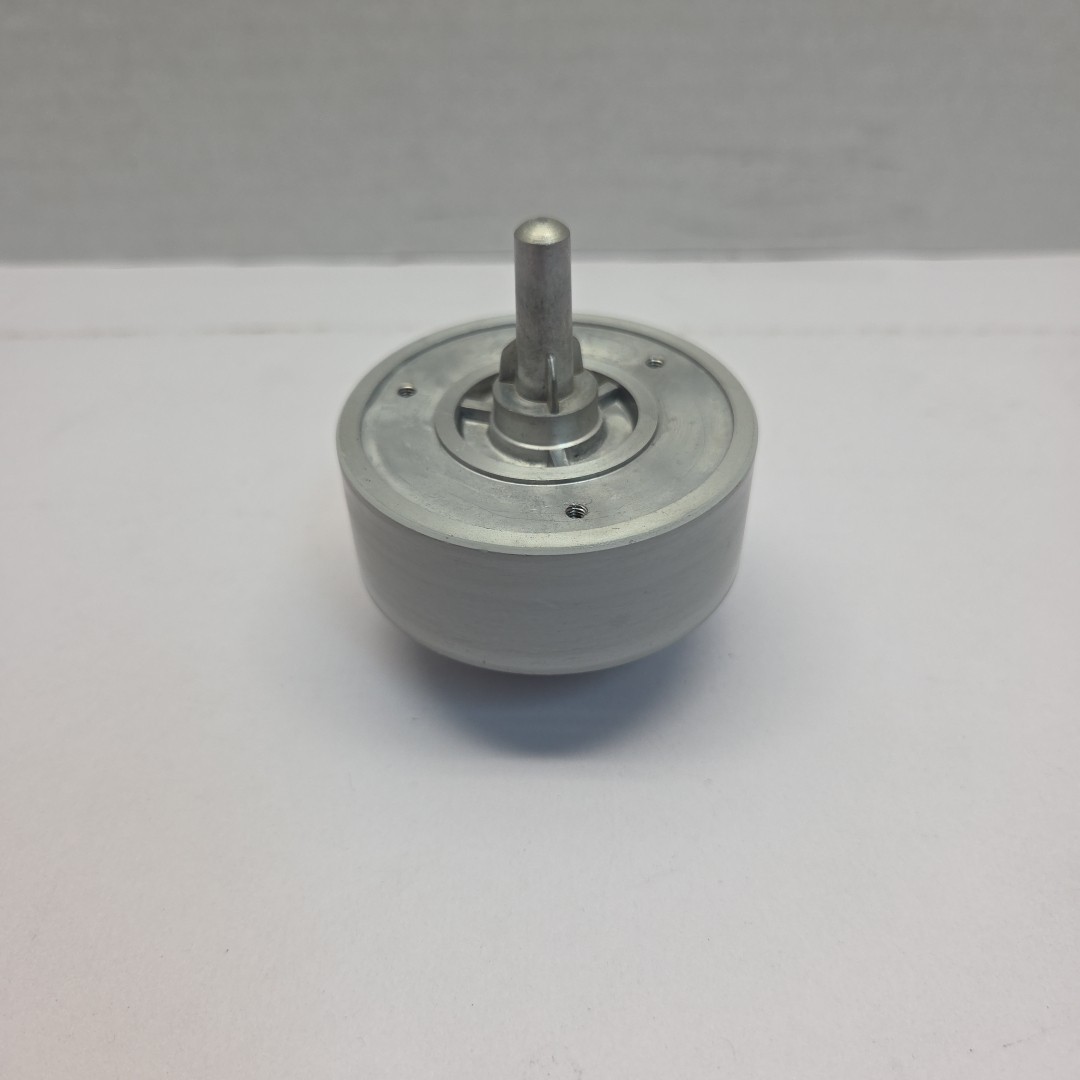

The A-4010S relies on a trio of precision motors: a 4-pole/8-pole dual-speed hysteresis synchronous motor for the capstan, plus two 6-pole eddy-current outer-rotor motors for the supply and take-up reels. This configuration, highlighted in multiple 1968 magazine reviews, was a TEAC exclusive at the time and directly contributed to its low wow and flutter. HiFi-Stereo (November 1968, p.147) noted this motor setup as a key factor in achieving “studio-quality sound,” minimizing speed instability that plagued lesser decks. The hysteresis motor maintains consistent speed across both 19 cm/s (7.5 ips) and 9.5 cm/s (3.75 ips) tape speeds, with wow and flutter measured at 0.12% and 0.15% respectively—exceptional figures for a consumer-oriented machine.

Four-Head Configuration with Reverse Playback Head

True to its 4-track/2-channel design, the A-4010S employs four dedicated heads: erase, record, playback, and a separate reverse playback head. This eliminates the need to flip the tape or use a single head in dual roles, preserving signal integrity and enabling instant auto-reverse functionality. The playback heads feature a hyperbolic surface with a 3-micron gap, precision-machined for optimal high-frequency response. A complete front shield minimizes crosstalk and electromagnetic interference, supporting the deck’s wide frequency bandwidth. High-Fidelity (October 1968, p.115) emphasized the benefit of this layout, stating it delivered “less wow and flutter, more studio-quality sound” — a claim backed by the deck’s measured performance.

Foil-Sensing Auto-Reverse System

Instead of relying on tape end sensors or timers, the A-4010S uses a foil-sensing system: a thin metallic strip is applied to the back of the tape, triggering a switch when it reaches the reel hub, initiating automatic reverse playback at the desired point. This allowed for precise, repeatable bidirectional operation without mechanical wear from constant sensing. The system was part of what High-Fidelity (February 1967, p.131) described as a “symmetrical control system,” a TEAC-exclusive design that simplified operation and protected delicate long-play tapes by ensuring consistent tension control.

Symmetrical Push-Button Control Panel

The transport controls follow a T-shaped symmetrical layout—four buttons arranged for backward, fast forward, stop, and play functions—designed for intuitive, “feather-touch fool-proof” operation as noted in High-Fidelity (February 1967, p.131). The buttons are electrically controlled, reducing mechanical wear and ensuring reliable actuation. This layout, combined with a 4-digit index counter, gave users precise control over tape position, a rarity in consumer decks of the era.

Independent Tape Tension and Bias Control

The A-4010S includes a tape tension control switch with two settings, allowing users to adjust back tension based on tape thickness—critical for preventing stretching on thinner tapes. Additionally, the equalizer automatically switches between 50 μs (19 cm/s) and 90 μs (9.5 cm/s) time constants in line with NAB standards, while bias oscillation is set to 100 kHz to extend high-frequency response and prevent interference with FM broadcasts. These refinements reflect a design philosophy focused on maximizing fidelity across tape types and speeds.

Comprehensive Connectivity and Monitoring

Equipped with both RCA and DIN connectors, the A-4010S offered flexible integration into high-end systems of the period. It features independent level controls for microphone (10kΩ, 0.25mV min) and line (100kΩ, 0.14V min) inputs, allowing mixed-source recording. A monitor selector switch lets users toggle between source and tape output, while a VU meter provides visual feedback on recording levels. The headphone output supports impedances of 10kΩ or higher, and the line output delivers 1V into loads of 10kΩ or more—solid specs for system matching. Power is handled via a universal AC input (100V–220V, 50/60Hz), making it suitable for international use, with 110W consumption under load.

Performance Specifications

The A-4010S supports 1/4-inch tape on 7-inch (No. 17) reels, with standard speeds of 19 cm/s (7.5 ips) and 9.5 cm/s (3.75 ips). At the higher speed, frequency response extends from 30 Hz to 20 kHz (±3 dB between 50 Hz–15 kHz), while at 9.5 cm/s it covers 40 Hz to 12 kHz (±3 dB from 50 Hz–7.5 kHz). Signal-to-noise ratio is rated at 50 dB, and channel crosstalk is 50 dB at 1 kHz, with 40 dB track-to-track isolation at 100 Hz—solid figures for the era. The solid-state circuitry ensures reliability and low maintenance compared to tube-based competitors, though owners note that after 50+ years, capacitors are likely nearing end-of-life and may require replacement. The deck measures 443 mm wide, 442 mm high, and 216 mm deep, and weighs a substantial 20 kg—its mass contributing to vibration resistance and stable operation.

Collectibility & Value

The A-4010S is not commonly seen on the second-hand market, but when it does appear, it often arrives in need of service. Common issues reported include gooey or frozen pinch rollers, dirty controls, and dried lubricants—typical ailments for a machine of its age and complexity. The “typical Teac problems,” as one owner put it, are manageable with proper restoration. However, due to its weight, intricate mechanics, and age, full servicing requires expertise. While no current market prices are documented, its rarity and feature set suggest it holds value among reel-to-reel enthusiasts, particularly those restoring period-correct high-fidelity systems.
