Denon AU-310 (c. 1976)

Name: Denon AU-310
Brand: Denon
Availability: InStock

A compact, dual-shielded step-up transformer built for the DL-103, with a 1:10 winding ratio and a reputation for tonal neutrality

Overview

At just 53 mm tall and weighing only 650 grams, the Denon AU-310 sits unassumingly on the equipment shelf, but its presence in a vinyl setup speaks to a specific kind of analog purism. Released around 1976 and priced at ¥14,000, this was not a preamplifier as some listings mistakenly claim, but a dedicated MC step-up transformer designed explicitly to pair with low-output moving-coil cartridges—most notably the legendary Denon DL-103 and DL-103S. Owners report it delivers a balanced, transparent sound that doesn’t impose coloration, making it a favorite among listeners who value accuracy over euphony. Its compact steel enclosure houses a precision-wound transformer with a 1:10 step-up ratio, engineered to boost signal levels without sacrificing signal-to-noise performance, thanks in part to its double magnetic shielding.

Unlike more complex models such as the AU-320, the AU-310 keeps things simple: it lacks multiple inputs and tone controls, focusing instead on a single, well-executed task. It was positioned as a mid-tier option in Denon’s MC transformer lineup, offering core functionality without the added circuitry or switching options of higher-end units. Despite its modest footprint—measuring 51 mm wide by 181 mm deep—it plays a critical role in systems where gain and impedance matching are paramount, especially when using cartridges with outputs around 0.3 mV.

Key Features

1:10 Winding Ratio with 40 Ω Primary Impedance

The AU-310’s 1:10 step-up ratio transforms the cartridge’s output voltage by a factor of ten, effectively raising signal levels to better match standard MM phono preamp inputs. With a primary impedance of 40 Ω, it presents an optimal load for cartridges like the DL-103, which performs best into loads between 20–50 Ω. This precise impedance matching helps preserve transient response and high-frequency extension, avoiding the dulling effect that can occur with mismatched loads. The secondary impedance is 4 kΩ, a standard value for driving typical phono stages without overloading them.

Double Magnetic Shielding

One of the AU-310’s standout engineering choices is its double magnetic shield, a feature Denon emphasized to minimize hum and interference from nearby power transformers or AC fields. This was particularly important in densely packed audio racks of the 1970s, where preamps and power amps often sat side by side. According to available documentation, the dual shielding significantly improves the signal-to-noise ratio, allowing the delicate MC signal to remain clean even in electrically noisy environments. Combined with a low-capacity output cord—approximately 1.2 meters long—the design minimizes capacitance-induced high-frequency roll-off, preserving detail.

Pass Circuit for Cartridge Switching

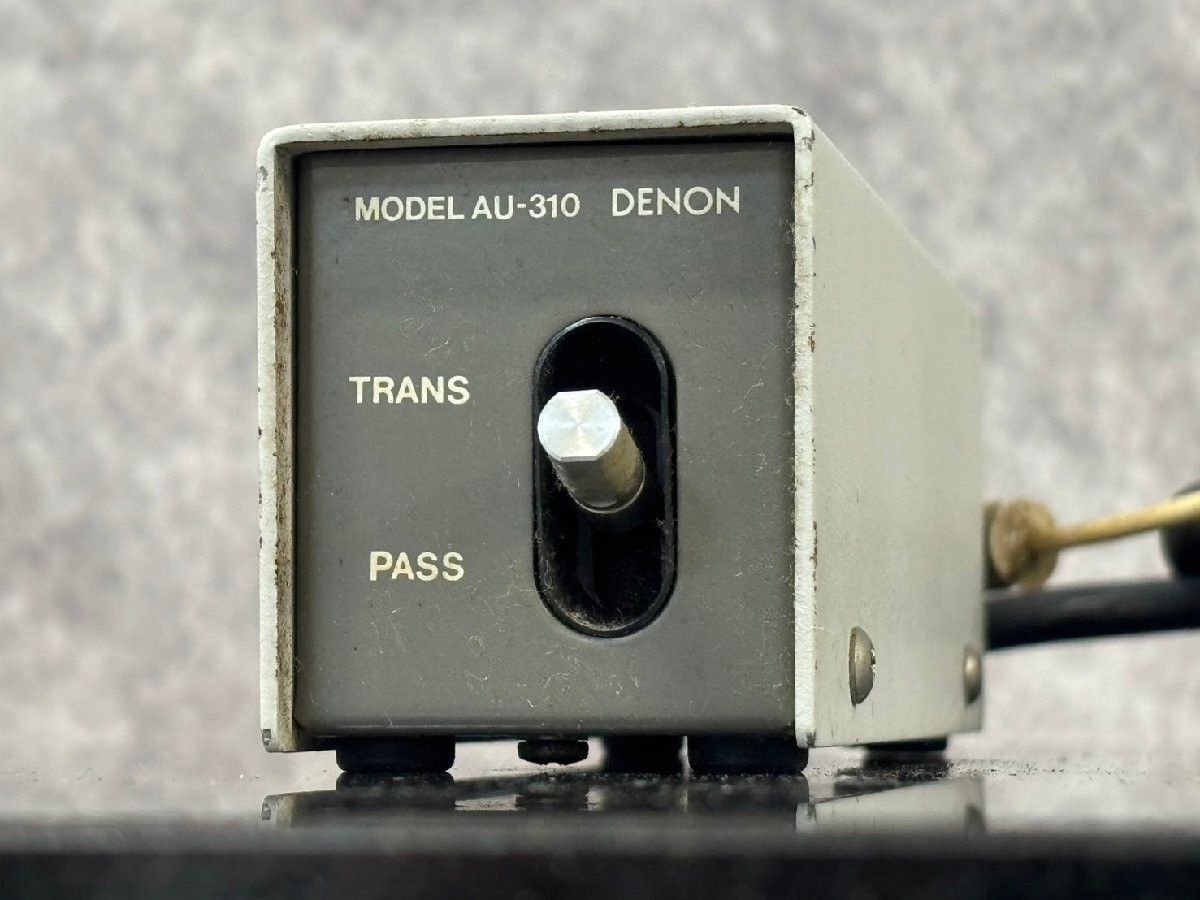

The unit is equipped with a pass circuit that allows users to switch between MM and MC cartridges on the same tonearm without rewiring. This was a practical convenience for audiophiles who owned multiple cartridges and wanted quick access to both types. While the AU-310 itself does not amplify or equalize the signal—RIAA correction remains the job of the downstream phono stage—the pass circuit ensures seamless integration into a flexible analog setup. Collectors note that this feature, while subtle, adds real-world usability, especially when paired with arms that lack dual headshells or quick-swap mechanisms.

Historical Context

Denon introduced the AU-310 around 1976, during a period when moving-coil cartridges were gaining favor among serious vinyl enthusiasts for their superior tracking and transient response. As part of Denon’s broader ecosystem of analog components, the AU-310 was designed to complement the DL-103 series, creating a cohesive signal chain that prioritized fidelity and reliability. It filled a niche between basic step-up devices and more elaborate preamps, offering a clean, no-frills solution for MC cartridge users. The AU-320, a more advanced sibling, included multiple inputs and greater flexibility, but the AU-310’s stripped-down design appealed to purists who wanted minimal intervention between cartridge and preamp.

Collectibility & Value

The Denon AU-310 is not a headline-grabbing collector’s item like the Marantz 2270 or Luxman L-550, but it holds steady respect among MC cartridge enthusiasts. Its value is primarily functional, with working units selling on eBay between $120 and $295, depending on condition and seller reputation. Samurai Audio listed it at $179.99 when available, indicating consistent demand among modern vinyl listeners. Owners praise its “beautiful sounding” character and “right” tonal balance, with one noting it outperformed three other step-up transformers in a direct comparison. Forum users frequently report acquiring the AU-310 to complete a vintage Denon-based setup, particularly with the DL-103S. While not prone to common failures, potential buyers should verify the transformer windings and shielding integrity, as no service manuals are readily available for repair.
