Sony TC-K7

Name: Sony TC-K7
Brand: Sony
Availability: InStock

A high-end cassette deck with 3-step tape selection, Dolby NR, and remote capability, featuring F&F heads and logic-controlled operation

Overview

The Sony TC-K7 and its variant TC-K7B are professional-grade cassette decks. Manufactured by Sony, these models feature advanced tape transport design, precise audio specifications, and a range of user controls for accurate recording and playback. Available in silver (TC-K7) and gun metallic (TC-K7B) finishes, they support remote operation via the optional wired RM-30 controller.

Specifications

Signal-to-noise ratio	60 dB (Dolby off, Peak Level)
Frequency response	20 Hz ~ 18 kHz
Wow and flutter	0.06% wrms
Power consumption	26W
External dimensions	Width 430 x Height 170 x Depth 310 mm
Weight	10.0kg
TC-K7 price	¥ 99,800 (around 1976)
TC-K7B price	¥ 105,000 (around 1976)

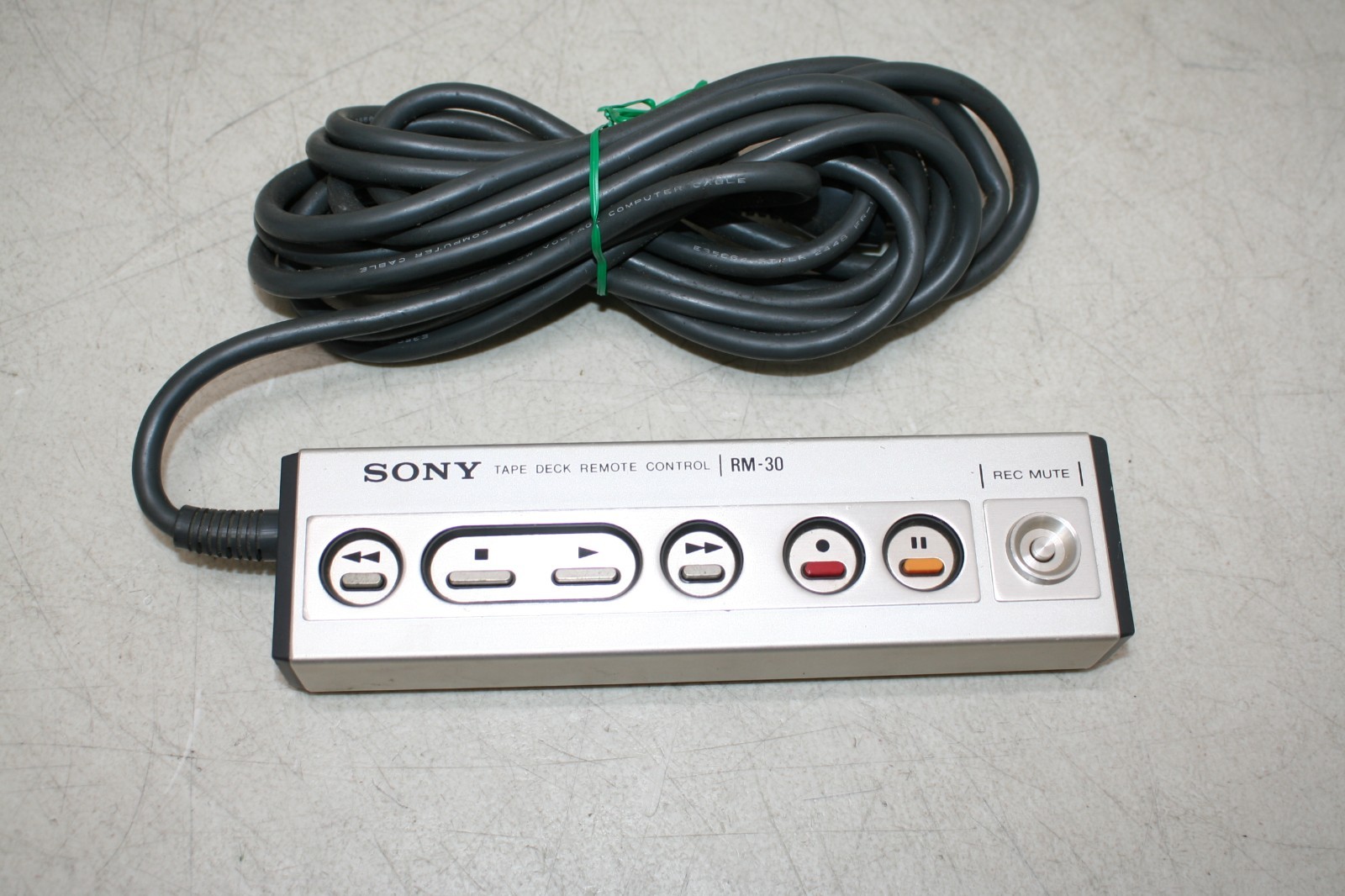

Sold Separately	Wired Remote Controller RM-30 (¥ 9,800)

Design

The TC-K7 uses an F&F (Ferrite & Ferrite) head directly coupled to the preamplifier for improved audio performance. It employs two motors: a frequency-controlled servo motor for the capstan and a high-torque motor for fast forward and rewind. The deck features logic-controlled feather-touch operation, a soft-eject mechanism with an air damper, and a 3-step tape selector with independent equalizer and bias settings. Additional features include Dolby NR, MPX filter, memory stop/play, Rec Mute, Sony Limiter recording, auto shut-off, front-panel stereo line-in, independent line-out and headphone level controls, and compatibility with an external timer for unattended recording. A large VU meter and peak level indicator are included, and the unit supports remote operation via the optional RM-30 wired controller.
