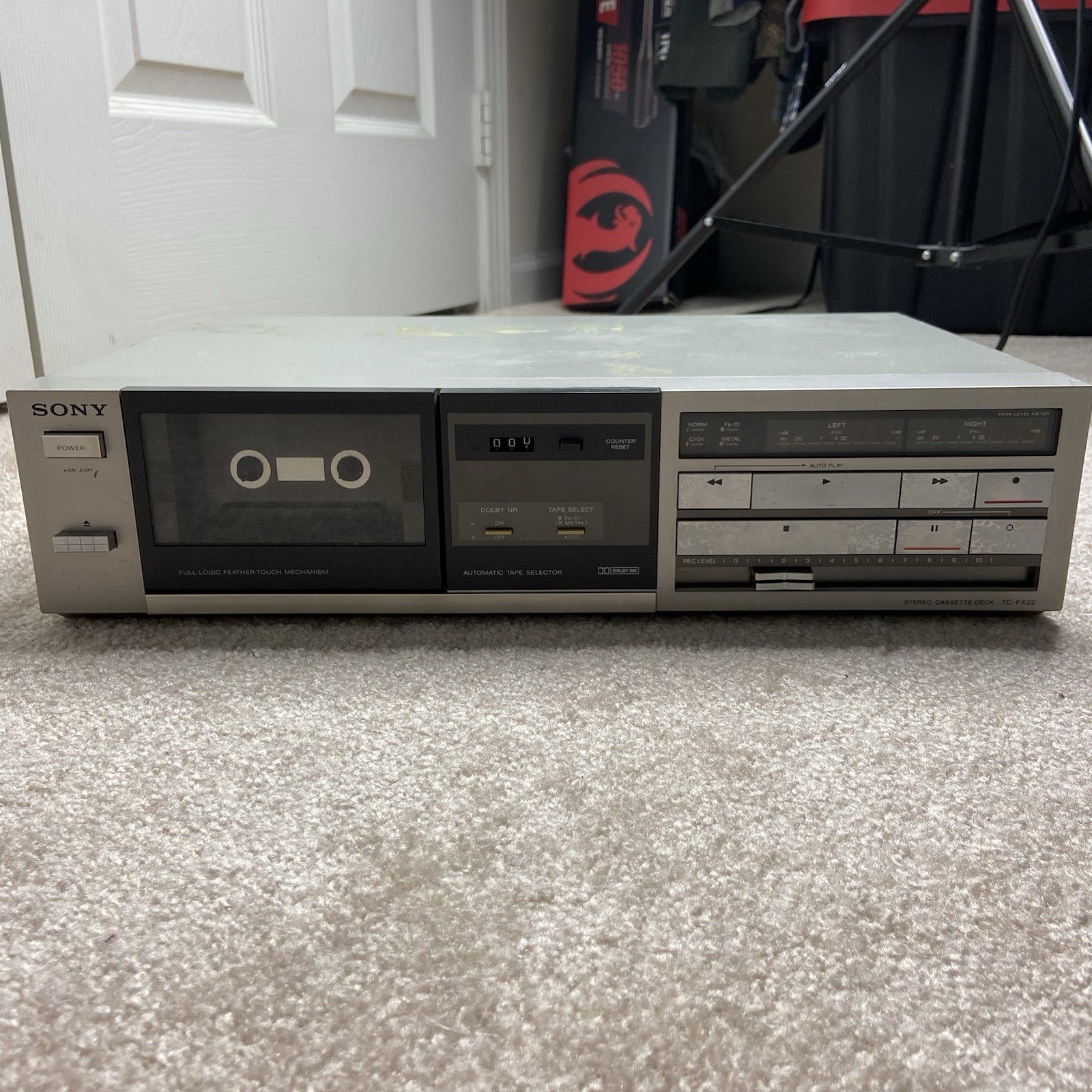

Sony TC-FX2
A high-fidelity cassette deck from Sony featuring an SD head, Dolby B noise reduction, and precision 2-motor transport
Overview
The Sony TC-FX2 is a cassette deck produced by Sony, designed for high-quality analog tape playback and recording. It features a Super High Density (SD) head and a 2-motor drive system with a DC servo capstan motor for stable tape speed. The deck supports four tape types—Normal, FeCr, CrO2, and Metal—and includes Dolby B noise reduction for improved signal clarity.
Specifications
| Heads | 1 erase, 1 record/play (SD head) |
| Motor | DC servo motor (capstan), plus reel drive motor (2-motor system) |
| Signal-to-noise ratio | 58 dB (Dolby off, peak, metal tape) |
| Frequency response | 30 Hz - 15 kHz ±3 dB (Metal tape) |
| Wow and flutter | 0.05% WRMS |
| Total harmonic distortion | 1.0% (Metal tape) |
| Power consumption | 10W |
| Dimensions (W x H x D) | 430 x 105 x 255 mm |
| Weight | 4.3 kg |
Design
The TC-FX2 uses a 2-motor mechanism with dedicated capstan and reel motors, driven by a DC servo system for precise tape control. It features soft-touch logic controls, a soft-eject mechanism, and a backlit twin VU meter with a +6 dB peak indicator. The playback circuit employs a direct-coupled amplifier and head with a DC amplifier configuration. An integrated timer standby function and high-output headphone jack are included, along with a 4-position tape selector for Normal, FeCr, CrO2, and Metal tapes.
Market
The Sony TC-FX2 had an original price of ¥36,800 circa 1981.
