Altec Lansing 1590B
A monaural power amplifier delivering 200W of continuous output with selectable impedance taps and wide voltage compatibility.
Overview

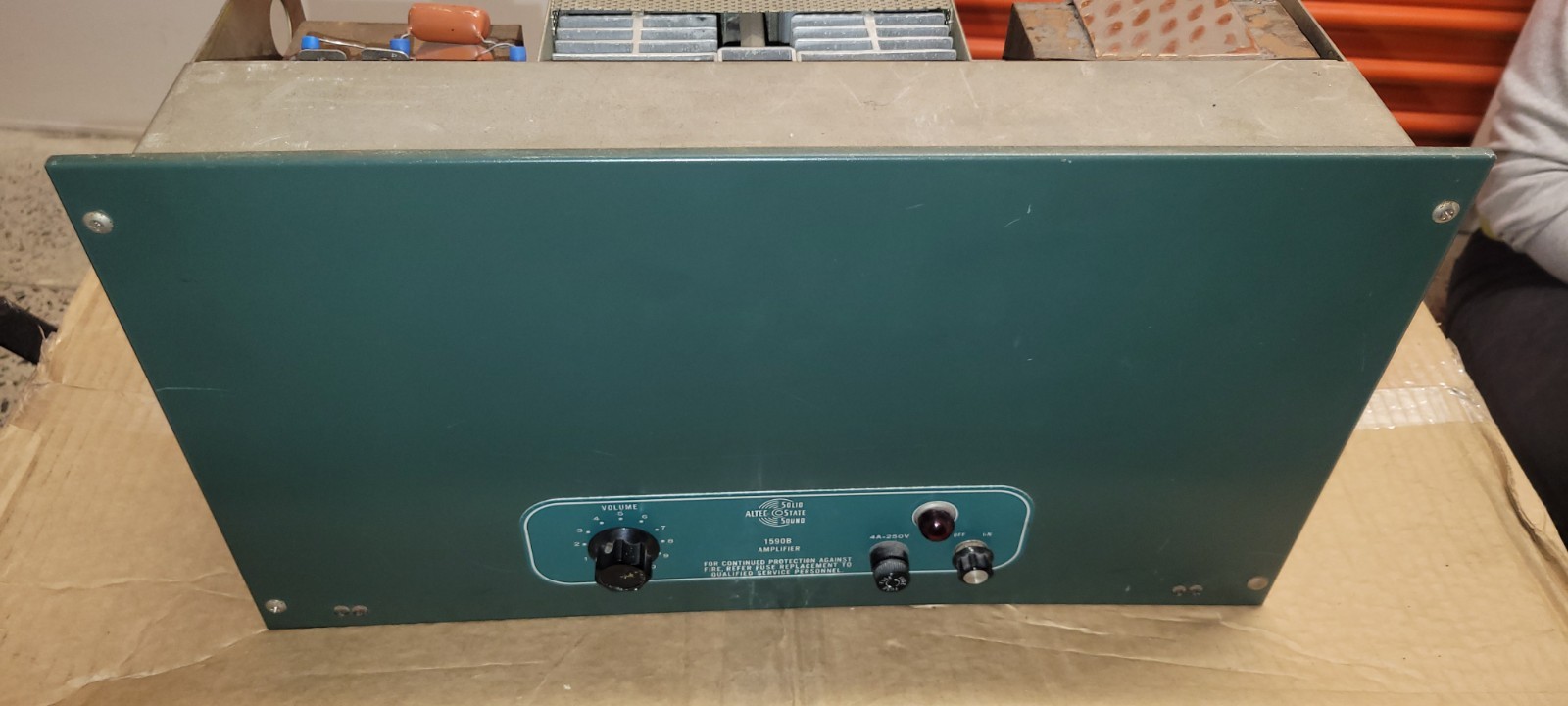

The Altec Lansing 1590B is a monaural power amplifier designed for professional or high-performance audio applications. Built to drive a variety of speaker loads, it supports impedances of 6.25 Ω, 8 Ω, 25 Ω, and 32 Ω, making it adaptable to different installation requirements. It operates on either 120 VAC or 240 V power at 50Hz or 60Hz, suggesting use in international or industrial settings where voltage flexibility is essential.
Specifications
| Output | 200W continuous |
| Input | 0.8V |
| Frequency characteristic | 20 Hz to 20 kHz ± 1 dB |
| Load impedance | 6.25 Ω, 8 Ω, 25 Ω, 32 Ω |
| Power | 120 VAC / 240 V, 50Hz/60Hz |
| Power consumption | 25W ~ 420W (maximum) |
| External dimensions | Width 483x Height 267x Depth 210 mm |
| Weight | 18.6kg |
